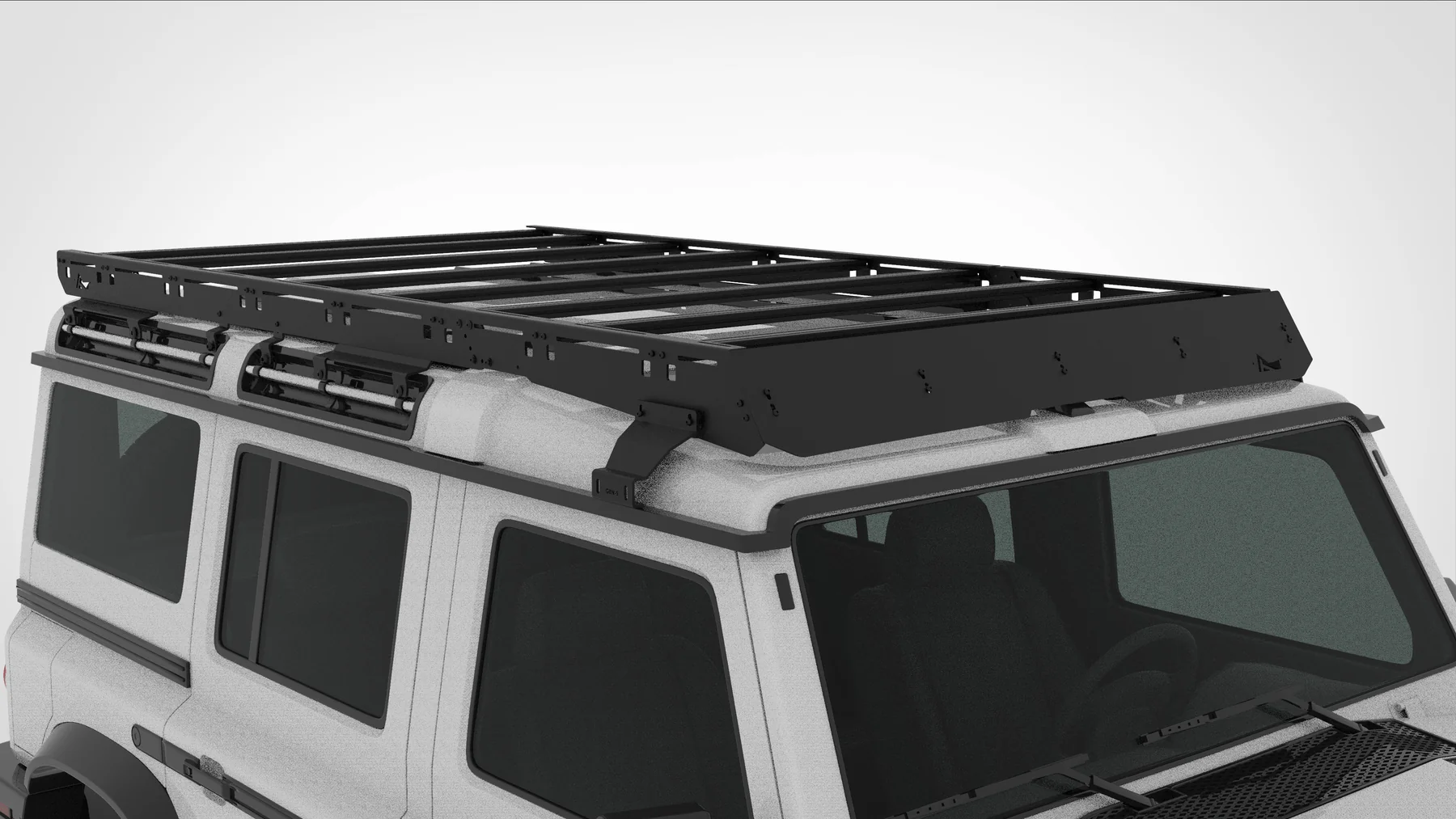

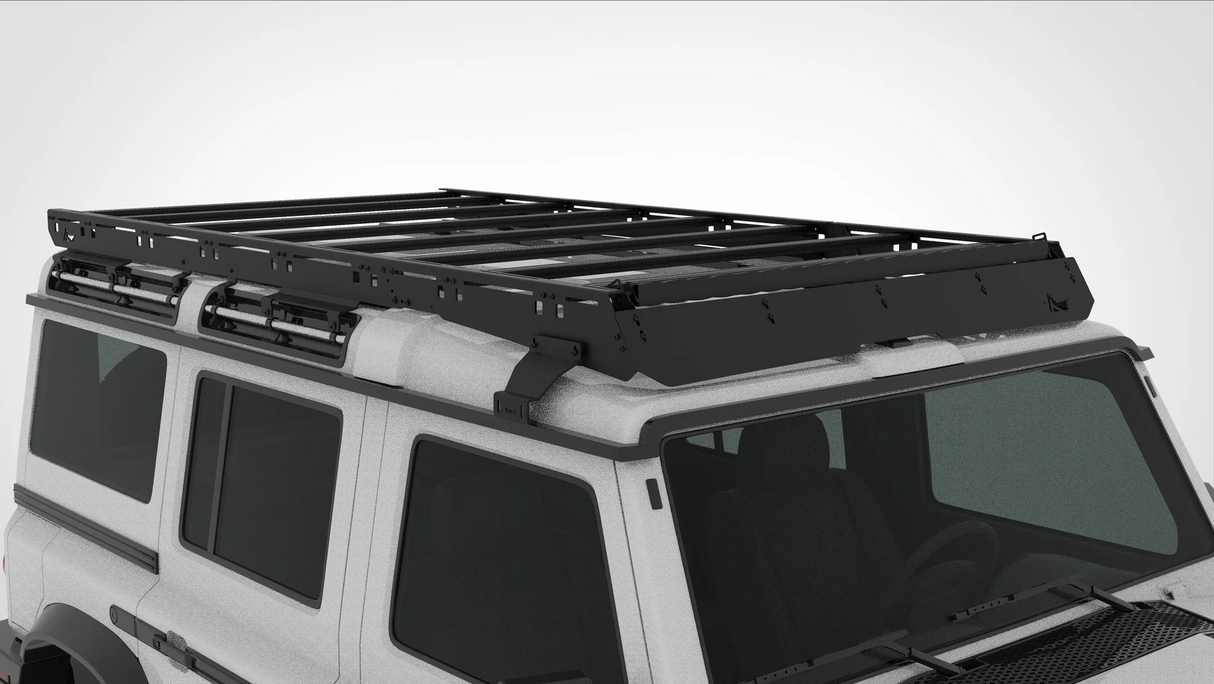

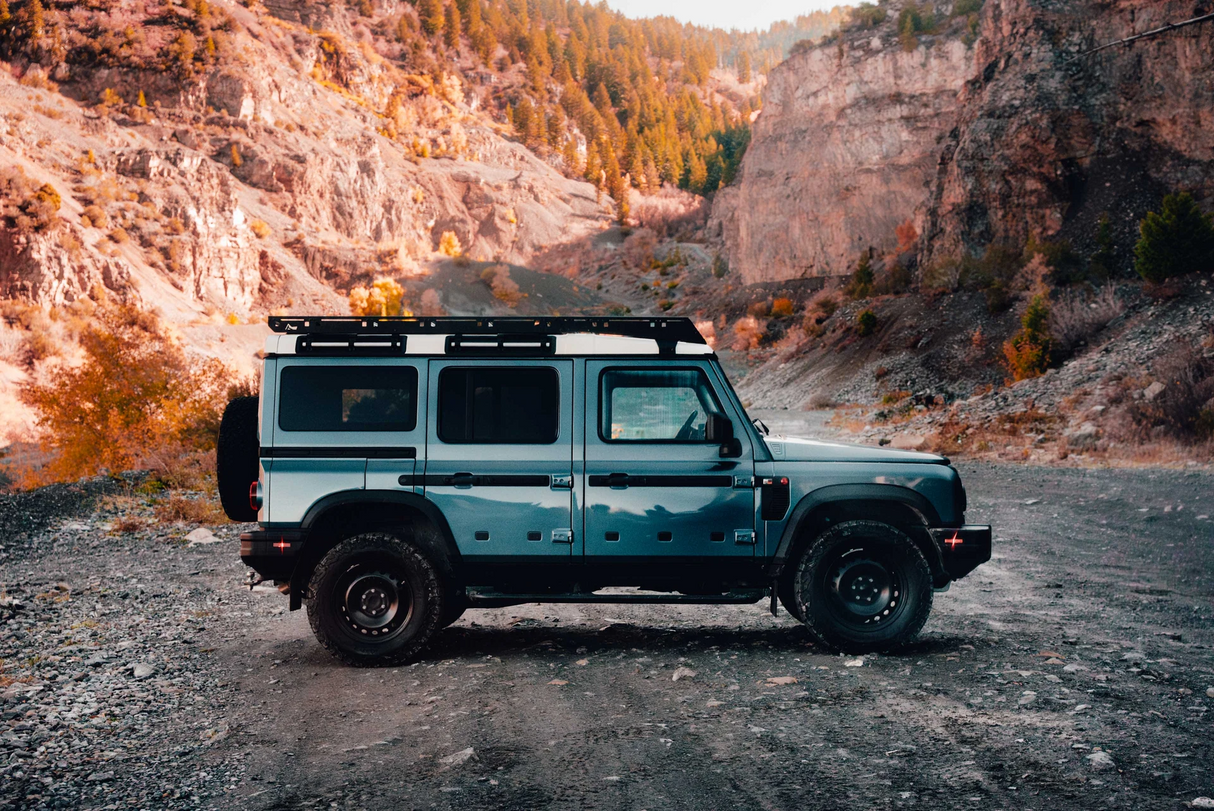

Ineos Grenadier Modular Roof Rack | Full Length

Compatible with safari windows

Wanting to ensure your safari windows will function with our rack? No worries there! This was a key point in our design to ensure you have the ability to open and remove your safari windows with the full length rack on. The full rack will require you to adjust the mounting location of one crossbar to allow the removal of the safari window.

The Ineos Grenadier Roof Rack will work with the TrailRax Pak Rax! (Pak Rax in development, coming soon) This Aluminum roof rack offers an assortment of ways to mount gear and tools for your next adventure. We use 5051 3/16" aluminum for the main panels that give extreme rigidness and durability for all the gear you plan to equip your Grenadier with. We also have a large number of accessories available with this roof rack that will allow endless combinations and possibilities for the end-user.

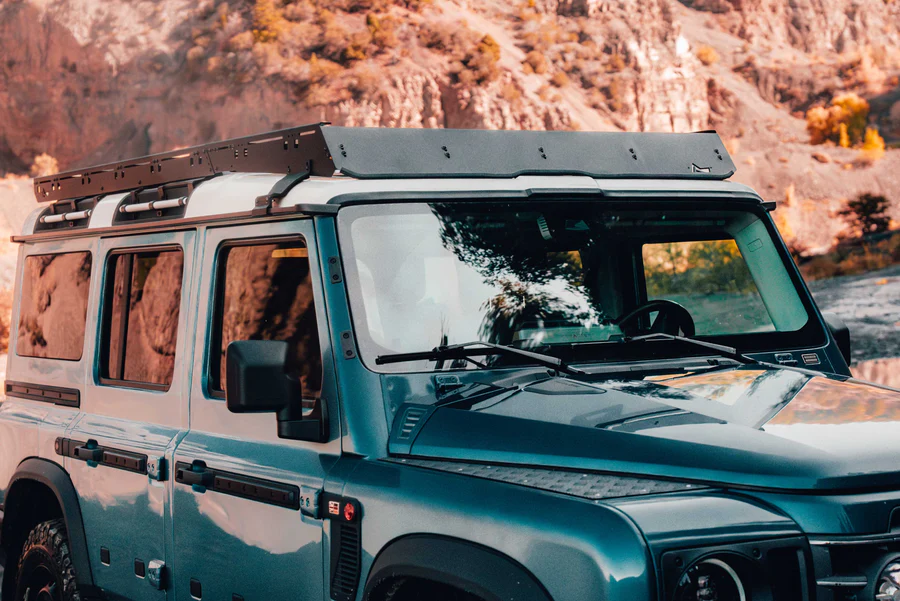

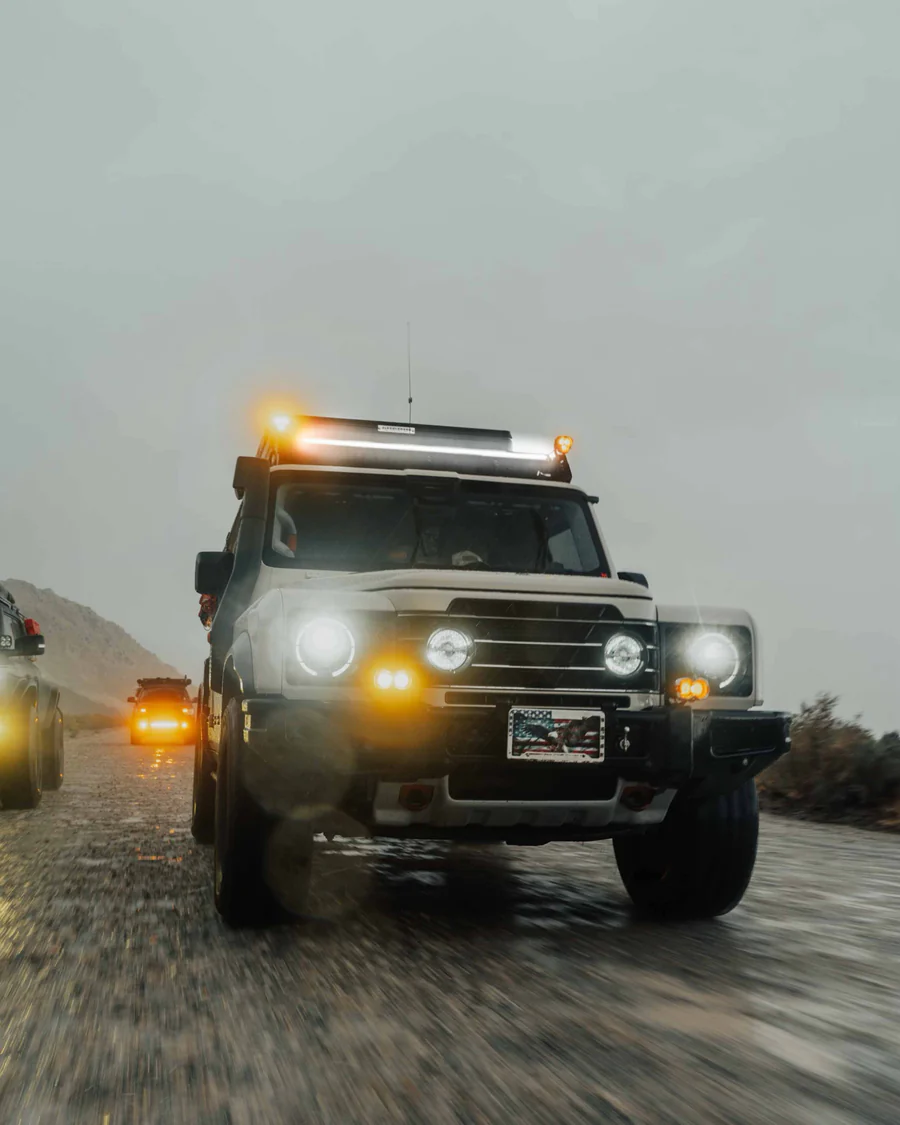

We added a wind deflector to the roof rack to eliminate wind-noise all together. One of the biggest complaints about the Grenadier is wind noise, we wanted to eliminate that noise as much as possible. We also worked with our lighting industry partners to work on a cut-out to flush fit an offroad light into the wind deflector. This combination of our roof rack and a light bar will allow the light to sit below the top face of the aluminum TSLOT so that the rack is completely level for those larger items on the rack.

Our Aluminum extrusions/TSLOTS that come with the rack are anodized black and are cut to length with absolute precision. The extrusions are made locally here in Utah and have a high-stress rating as well as deflection rating giving the user the best load capacity possible.

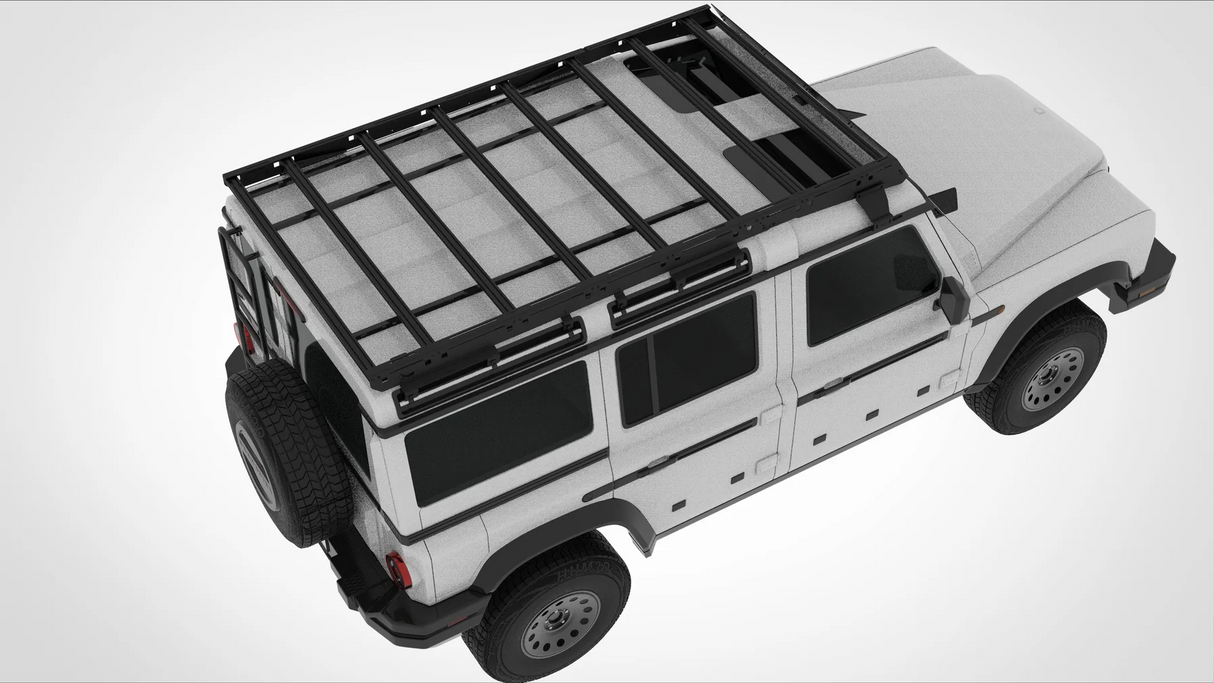

This rack is a 2 piece design that allows the front quarter to be removed when desired or added on later when additional storage is needed. It also offers a 90-degree bent channel that gives the end-user a full 360 degree area to mount even more accessories. These panels also come precut with slots to add more extrusions and tools to the side panels, offering the upmost modularity and customization.

The mounting system uses factory mounting holes that Ineos designed specifically for load. The rear 3/4 of the rack mounts from existing bolts from the grab handle assembly on the Grenadier for easy mounting that also offers the strongest mount possible for your Grenadier. The front quarter of the rack clamps to the rain gutter and isolates the stainless steel brackets with our stick on weather resistant foam making this full length rack entirely bolt on and easy to install.

Our TrailRax Modular Roof Rack line is a great option for the all-out overland Grenadier owners as well as the entry-level overlanders or off-roaders. This rack gives the end-user the ability to upgrade or add to their roof rack as they need.

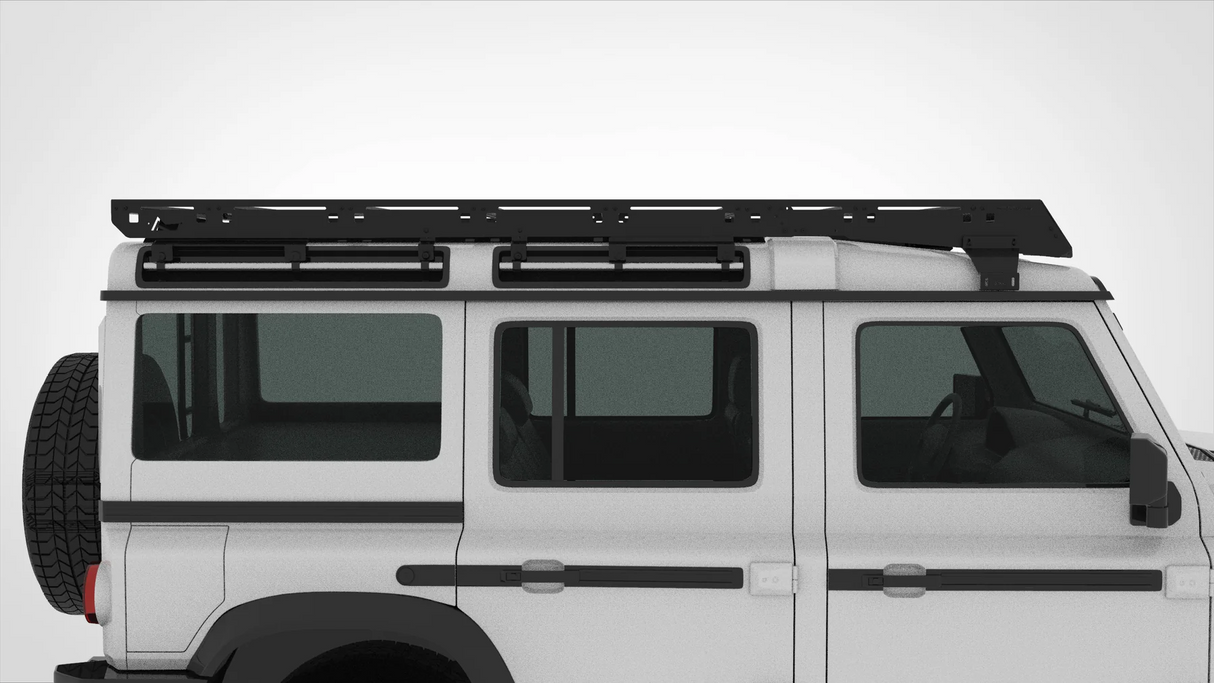

The Safari windows can open with the full length rack, you will need to move one crossbar forward or backwards on our slots for full accessibility.

Brand's and Products recommend using with our TRMR Rack:

While you are not limited to these brands, these brands worked with us along the way in designing the rack. This gives us and them the ability to work with their products within the design to make sure everything fits properly and works together in harmony. If you are looking to accessorize your TRMR Rack, look no further than these brands if you want high-quality products that fit directly to your TRMR Rack with no headaches.

Hit this link!

Specs:

• Overall height added to your Grenadier- 3.68" from the center of the roof. This is measured at the rear of the vehicle, center of the hump on the roof to the top of the rack.
• Pak Rax load rating: 70 lbs per side evenly distributed.
• Static load rating of the rack: 1000 lbs evenly distributed across the rack  verified in CAD and real life testing.
• Dynamic load rating of the rack: 450 lbs evenly distributed across the rack  verified in CAD and real life testing.
• Safari windows can be opened and removed with full length rack!
• 3/4 length rack will go from rear to the start of the slope on the roof in the front.

Attributes of the TrailRax Modular Roof Rack for the Ineos Grenadier:

• Higher weight capacity than the OEM roof rack and others
• Easy bolt-on install, no drilling
• Wind deflector to minimize annoying wind noise issues
• Cutouts for high-performance Off-road lights
• Majority Aluminum construction to avoid rust and corrosion
• Stainless steel load bearing brackets for superior load bearing
• Low profile to fit in garages and more
• Retains the ability to remove and open Safari windows
