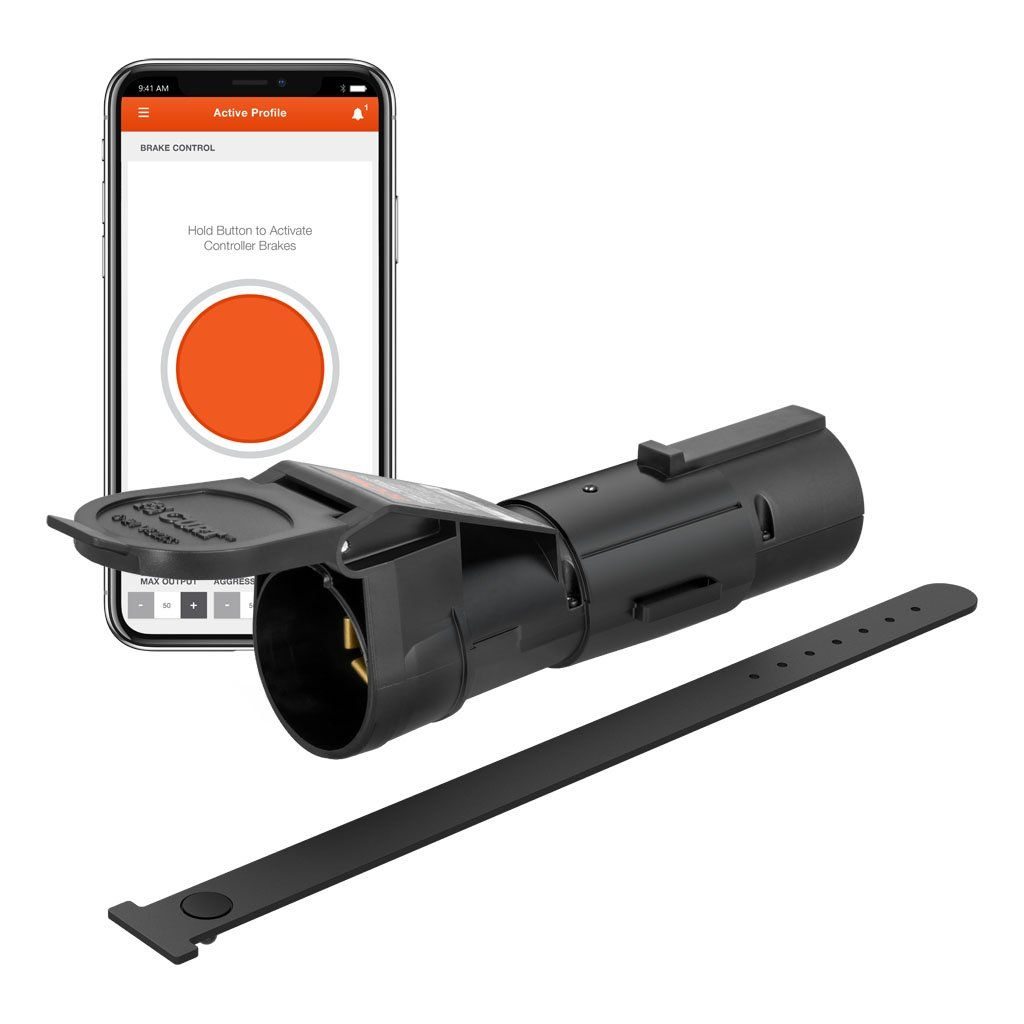

Echo Mobile Trailer Brake Controller

The Curt Echo mobile trailer brake controller is the first of its kind, providing an entirely new towing experience.
It syncs with your Apple or Android phone, turning it into a wireless brake controller interface.
Its compact, portable design allows for intuitive, app-enabled functionality, easy transfer from one vehicle to another and convenient storage when not in use.

The Echo mobile trailer brake controller is truly a brake control for the modern age. It plugs into your vehicle and wirelessly connects to your smartphone, allowing you to control and monitor all trailer brake activity right from your own device. It comes with a customizable app for Apple or Android phones, a portable design to easily switch between vehicle-trailer combinations and a durable, weather-resistant construction.

The Echo mobile brake controller operates using a triple-axis motion-sensing accelerometer -- an integrated circuit that produces smooth, safe stops every time. It is compatible with two to four trailer brakes (one to two axles) and can be used with low-voltage or PWM wiring systems. Echo® is also compatible with cruise control and ABS brakes and has built-in reverse-polarity protection and short-circuit protection. It is backed by a limited lifetime warranty.

Product Features:

• Wireless, portable design allows for easy transfer from one vehicle to another

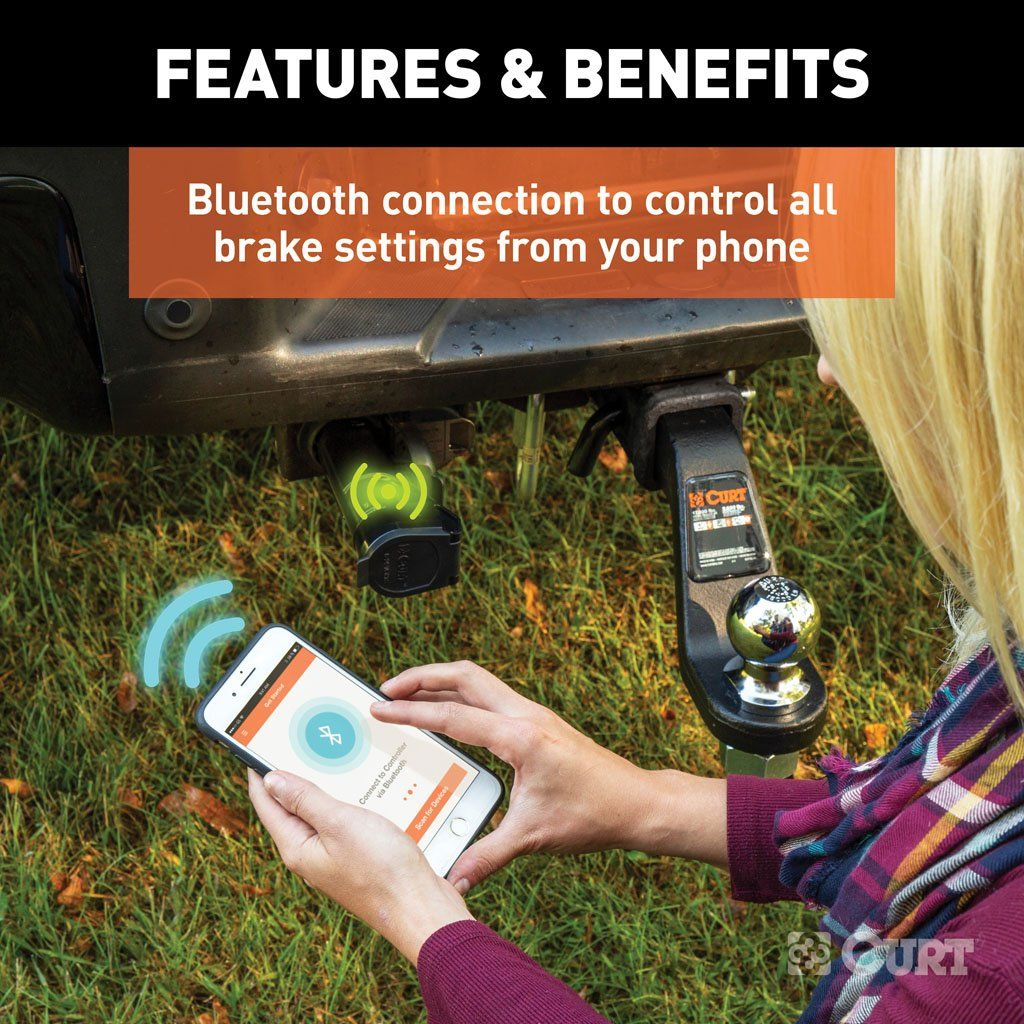

• Bluetooth connection to control all brake settings from your smartphone
• Custom-designed app monitors brake activity and sends status updates

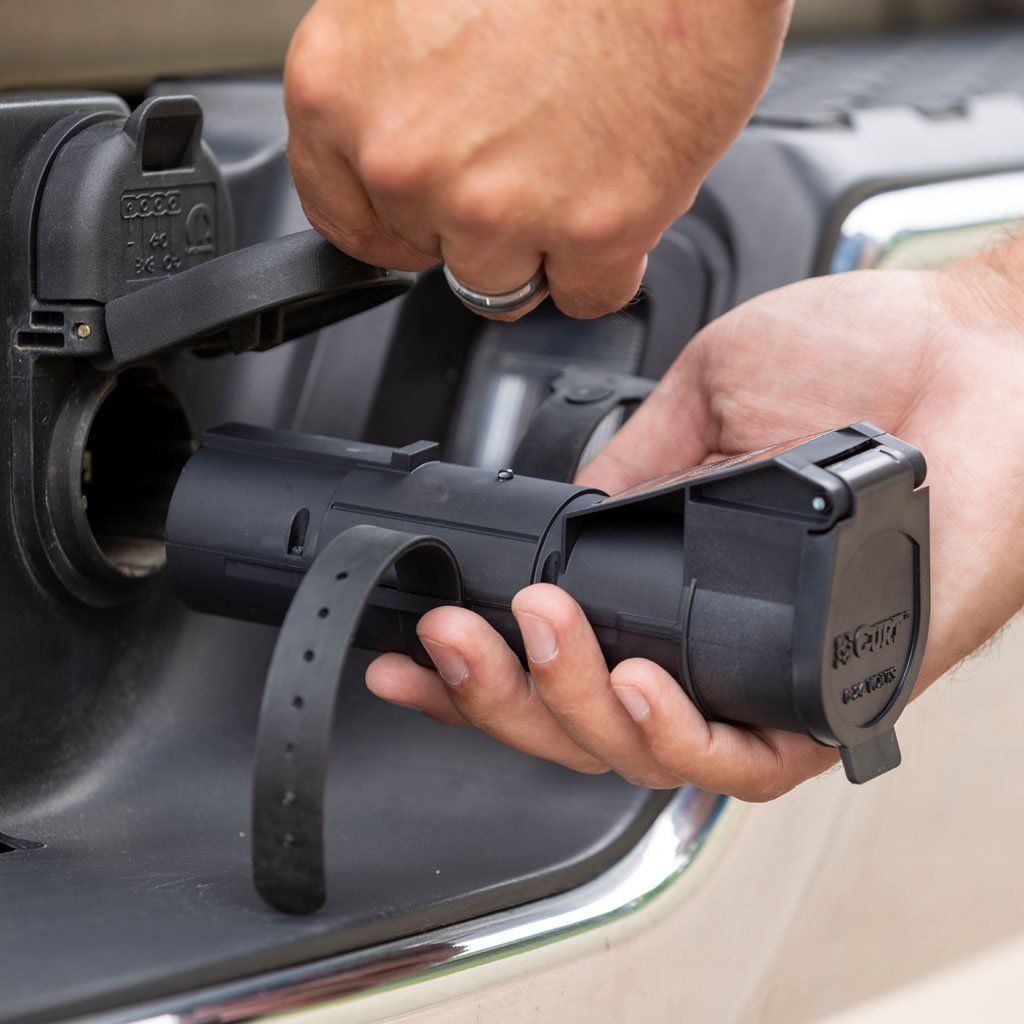

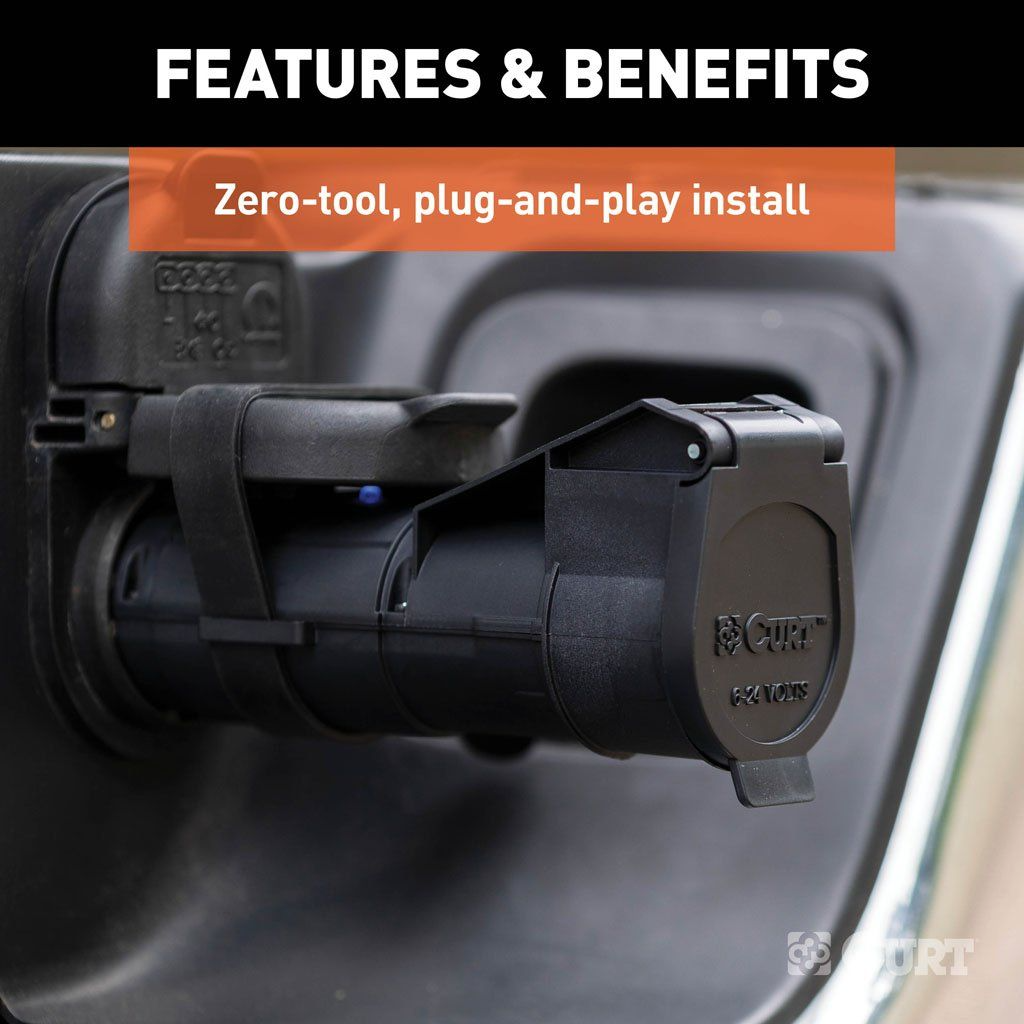

• Zero-tool, plug-and-play install between vehicle-trailer 7-way connectors
• Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops

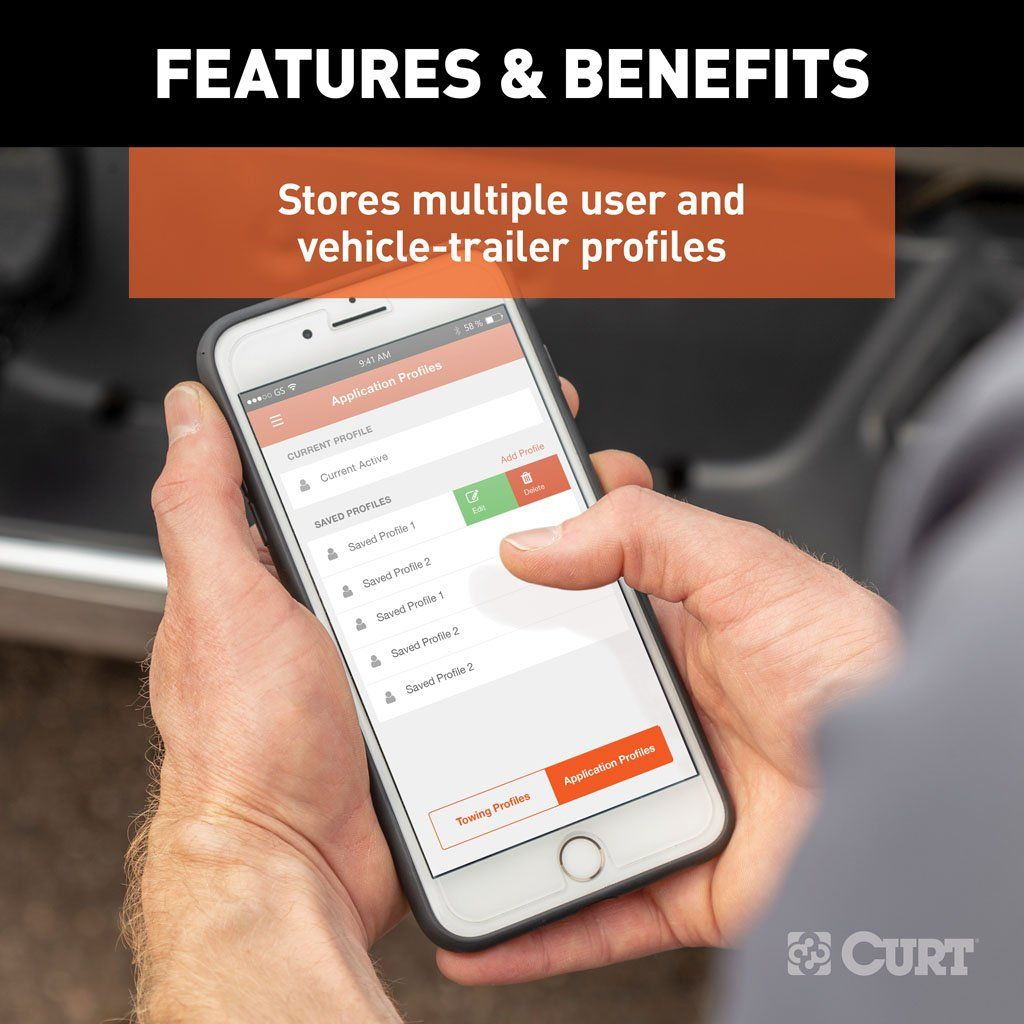

• Stores multiple vehicle-trailer profiles
• Multi-color LED indicates power, trailer detection and wireless connectivity

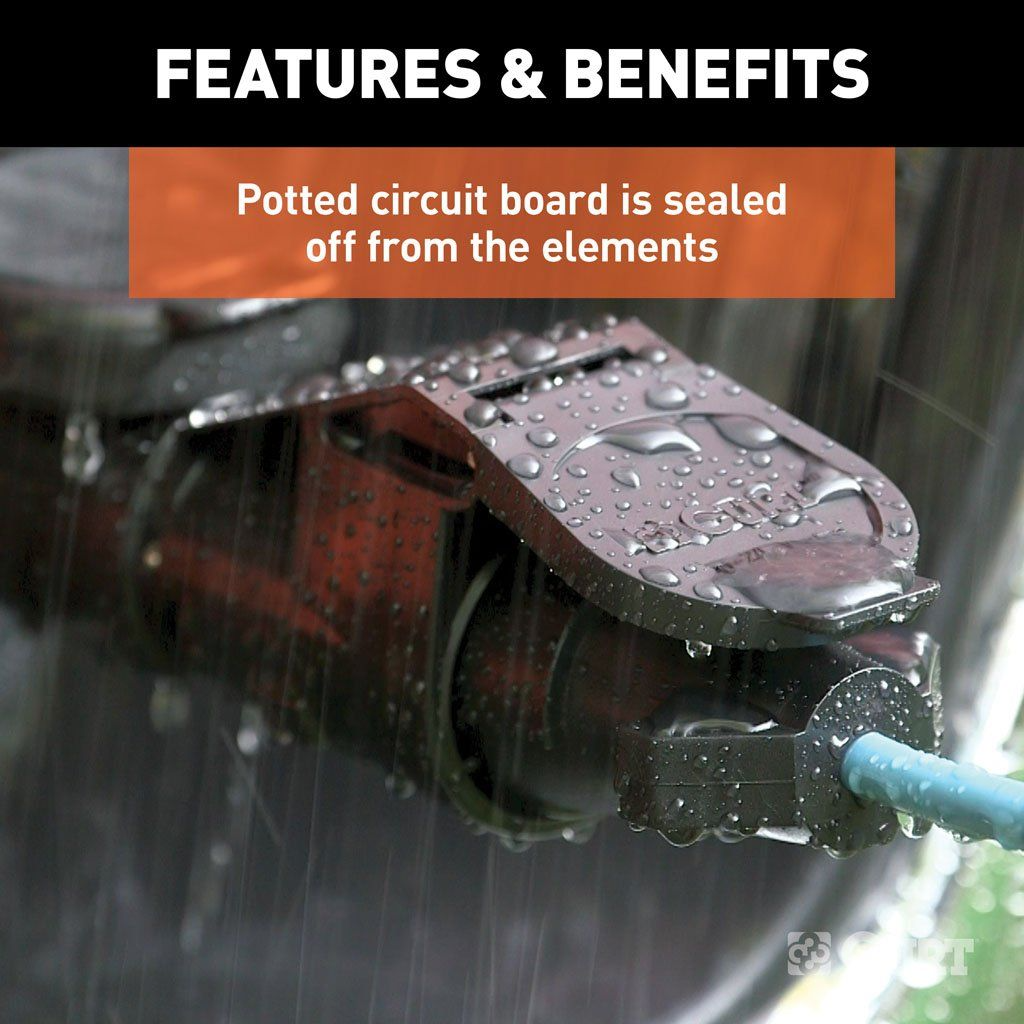

• Potted circuit board is sealed off from the elements for lasting durability

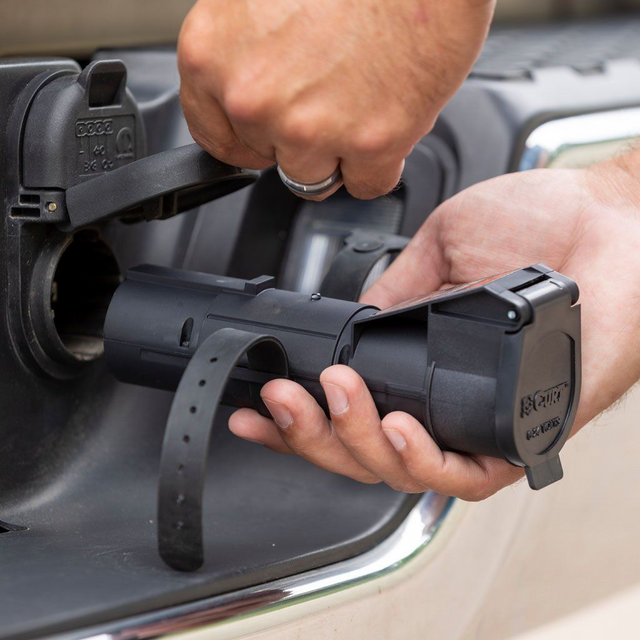

• Retention strap and locking tab help keep Echo firmly installed into 7-way
• Automatic calibration reduces setup requirements
• Downloadable app available for Apple iOS and Android OS
• Allows incoming calls to be received while app is running
• Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
• Built-in reverse-polarity and short-circuit protection
• Limited lifetime warranty

Product Specifications:

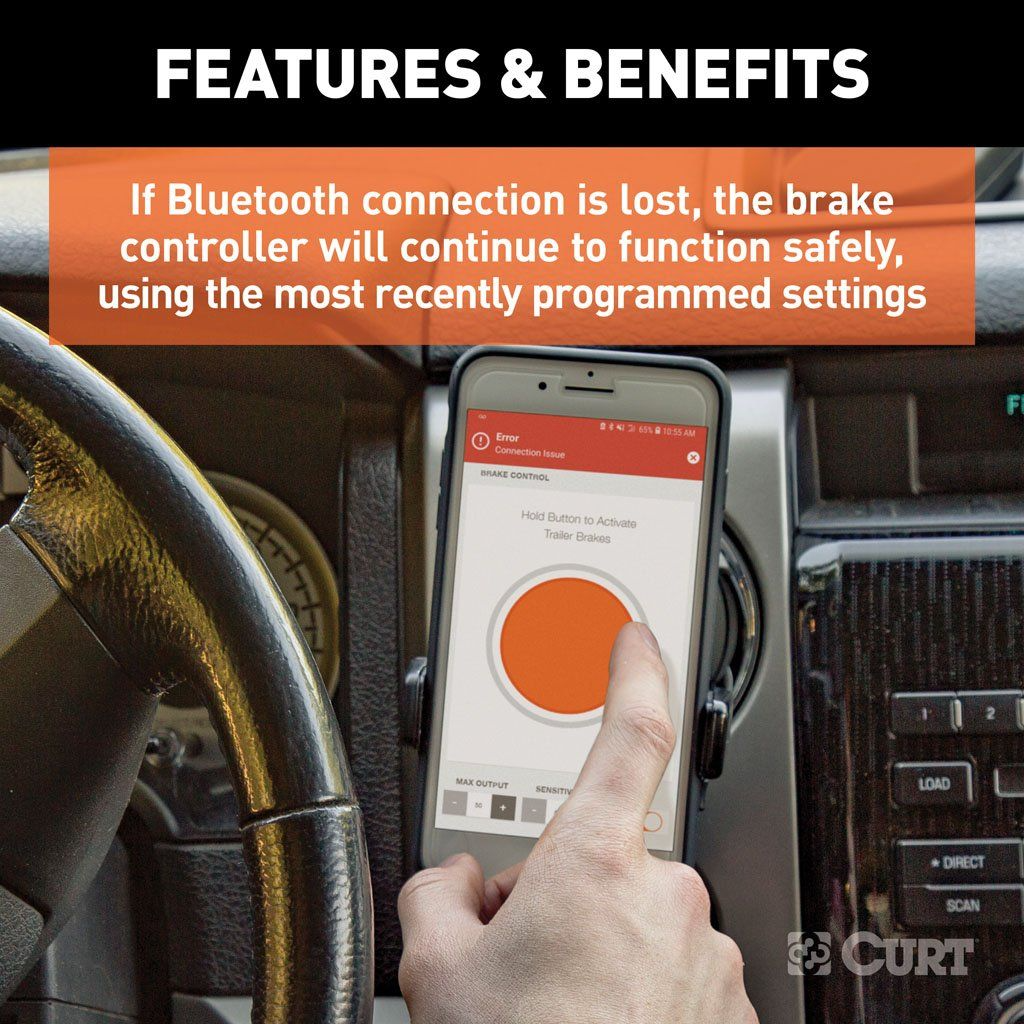

• If Bluetooth connection is lost, the brake controller will continue to function safely, using the most recently programmed settings.
• Warning: Avoid distracted driving. Only make adjustments when the vehicle is stationary.
• Not compatible, but will not interfere, with Apple CarPlay or Android Auto
• Axles - 1- 2
• Activation - Tri-axis inertia
• Level Adjust - Auto
